? VLAN support the transmission of long packets can support IEEE802.10 protocol products matching
switches used to support up to 1600-byte Ethernet packets;
u Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Ethernet POE characteristics
PoE standard: IEEE 802.3af (port output power 15.4W)
PoE type: the end of cross connection (optional for mid span)
PoE port: port output power of 15.4W (IEEE802.3af)
PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 136X131X31mm( WX DXH))
Piece Weight: 1KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

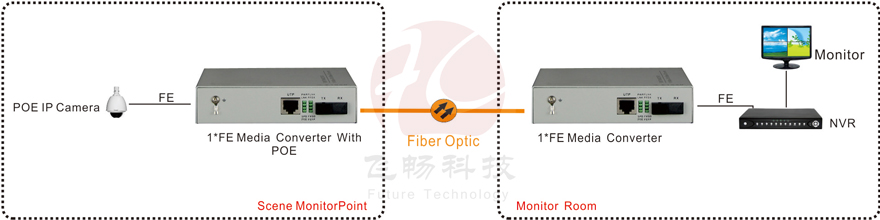

Applications
