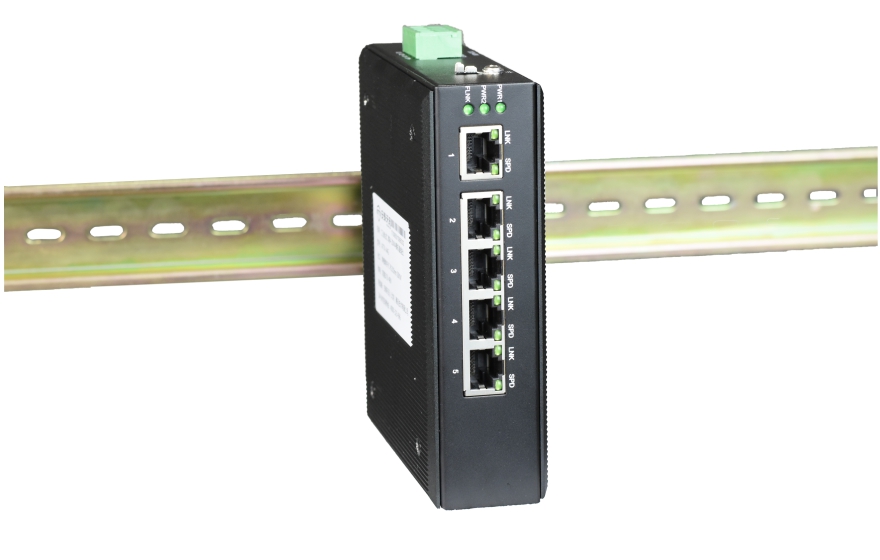

Industrial 5-port FE Switch

Type: FCJG-F5 MessageShare

Description:This series of products is industrial grade 5*100base-T switch this product provides 5*FE; with perfect alarm function the machine is stable and reliable low power consumption high integration small size providing 35mm industry Rail a

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

This series of products is industrial grade 5*100base-T switch this product provides 5*FE; with perfect alarm function the machine is stable and reliable low power consumption high integration small size providing 35mm industry Rail and wall mounted two kinds of installation.

Functional Properties

◆ Industrial Ethernet series designed for harsh and harsh industrial environments;

◆ The device provides 5*100M Ethernet electrical interface supports 10/100M adaptive full/half duplex mode MDI / MDI-X automatic detection;

◆ The switch has a deadline to monitor and self-resetting and other functions long-term work in the large flow of video transmission environment does not crash greatly reducing the workload of equipment maintenance;

◆ Transceiver built-in 512KBits high-speed cache IP cameras can avoid the rapid changes in the monitoring screen environment caused by the transmission screen stuck phenomenon;

◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch products to use support up to 1916 bytes of Ethernet packets;

◆ Support a wide range of 9-55V AC and DC power input;

◆ Support internal isolation redundant dual power input;

◆ Power supply support overload protection anti-reverse protection;

◆ Meet the requirements of industrial four electromagnetic compatibility;

◆ Super lightning protection: anti-lightning anti-sensor high pressure anti-surge etc .;

◆ No fan efficient cooling reduce the repair time;

◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

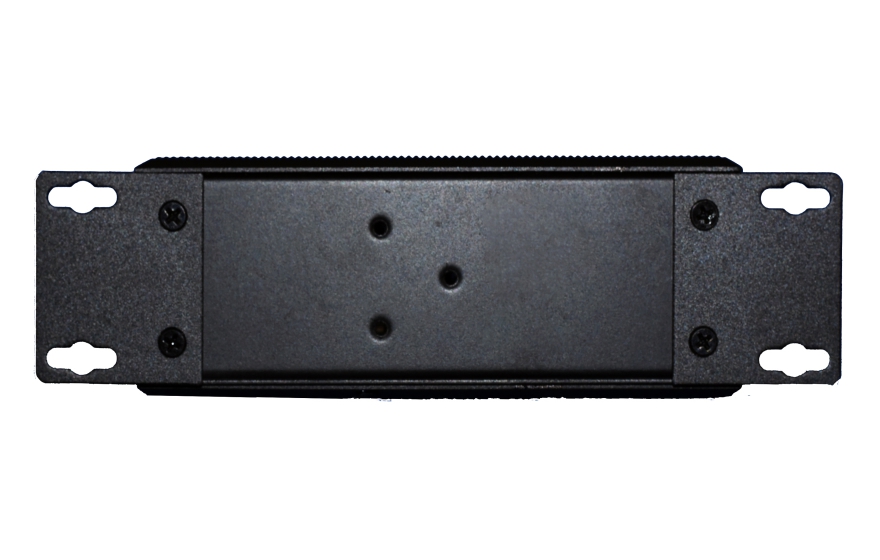

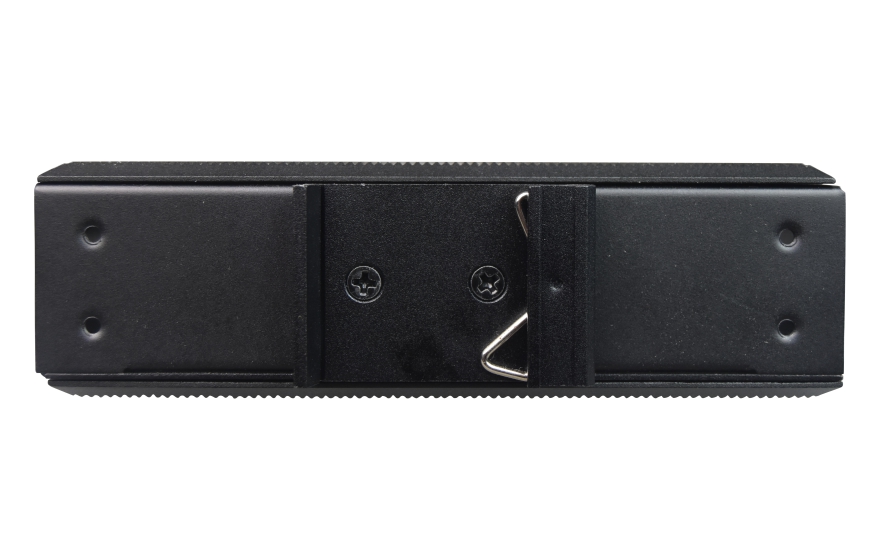

◆ Rail or wall mounted;

◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;

Technical Parameters

◆ E1 Interface

Interface Standard: comply with protocol G.703;

Interface Rate: n*64Kbps±50ppm;

Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance) 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

◆ Ethernet interface (10/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

◆ Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

◆ Dimension

Product Size: Mini Type 216X140X31mm(WXDXH)

Simple packaging: 274X193X84mm(WXDXH)

Piece Weight : 1.25KG

◆ Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

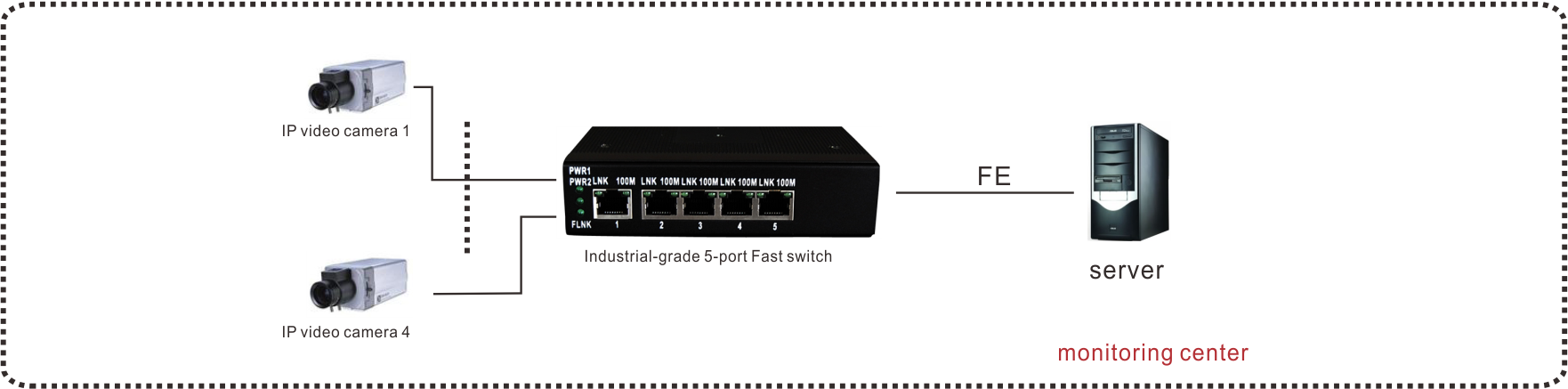

Application Scheme

DataSheet Download
