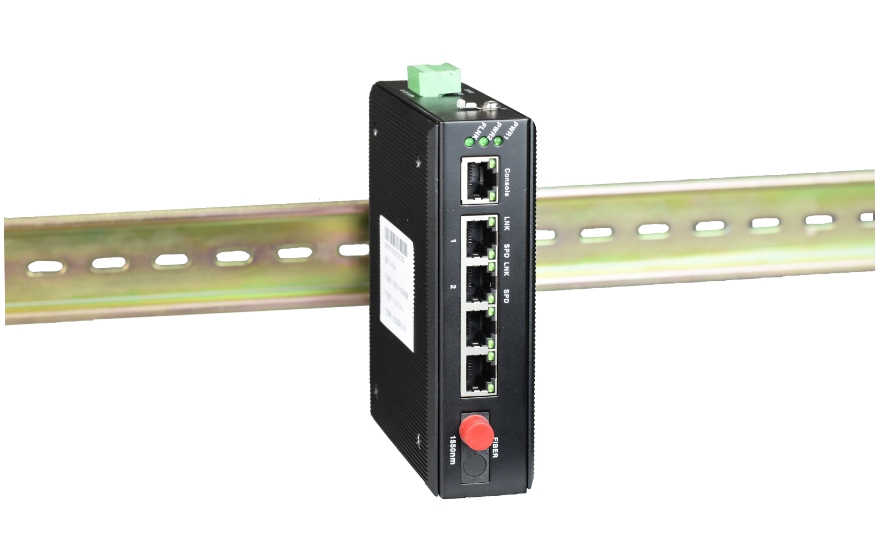

Managed 2* FE Fiber Media Converter

Type:FCMG-F2N MessageShare

Description:This series of products are industrial grade conversion between 2*10/100base-T and 100base-FX fiber media conversion optical fiber network is mainly used for long-distance transmission (20/40/60/80/120 km). This product offers 100M optical

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

This series of products are industrial grade conversion between 2*10/100base-T and 100base-FX fiber media conversion optical fiber network is mainly used for long-distance transmission (20/40/60/80/120 km). This product offers 100M optical Ethernet; 2*FE port.

Ethernet switch chip +FPGA scheme based on OAM frame with remote management function support Console /WEB / independent SNMP and 2U can also be inserted with SNMP network 1 optical transceiver card 1 electrical interconnection energy management to the equipment in SNMP software;

Functional Properties

◆ The industrial Ethernet series is designed for harsh industrial environments;

◆ The equipment provides 2 Fast Ethernet port 1 megabytes of light an optional Console/SNMP network port;

◆ The electrical interface (RJ45 interface) supports 10/100M adaptation full / half duplex mode and MDI/MDI-X automatic detection;

◆ Optical interface supports multimode fiber single-mode fiber double double optical fiber transmission mode of three kinds of fiber the optional SC/ST/FC/LC interface;

◆ It has the functions of broadcast storm protection balanced flow isolation conflict detection error and self reset of crash. It is suitable for video transmission and other large flow data applications;

◆ The built-in 1MBits high-speed transceiver can transmit images to avoid caching stuck phenomenon IP camera monitoring screen in a rapidly changing environment caused by;

◆ Support for VLAN ultra long packet transmission and can be used to support the IEEE802.1Q protocol switch products support for the largest 10K bytes of Ethernet package;

◆ +FPGA scheme for Ethernet switch chip equipment with remote OAM management frame function and 2U card with SNMP network 1 optical transceiver card 1 electrical interconnection SNMP software can manage the equipment; can also support Console (CLI) /WEB / SNMP network management independently;

◆ The network management real-time view and management of the end and the end of the Ethernet interface state and settings; equipment with power down detection function can detect when the optical signal lost for the terminal device power loss or optical fiber impassability;

◆ Supports wide range 9-55V AC and DC power input;

◆ Support for internal isolation redundant dual power input;

◆ The power supply supports overload protection and anti reverse connection protection;

◆ Comply with industrial grade four electromagnetic compatibility requirements;

◆ Super lightning protection function: against lightning resistance induction high voltage anti surge etc.;

◆ No fan high heat dissipation reduced repair time;

◆ Anodized aluminum housing IP40 protection level able to withstand the harsh environment test;

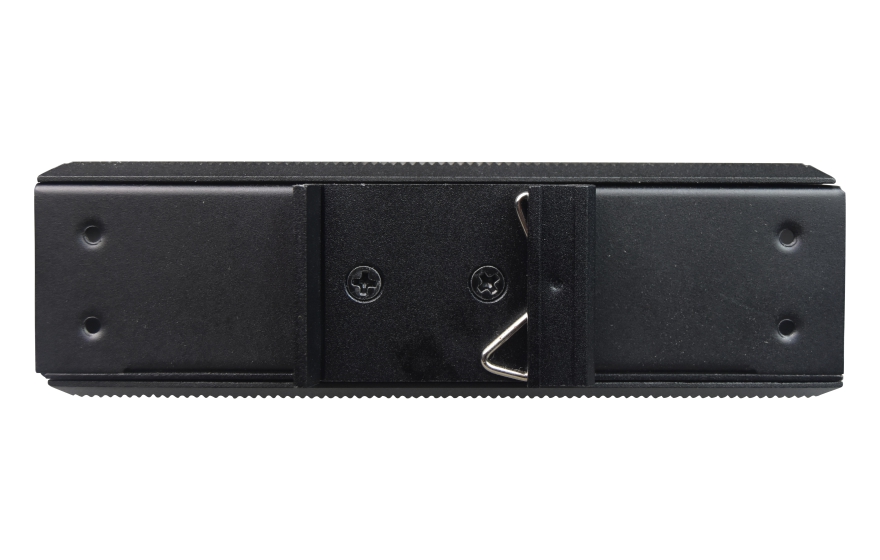

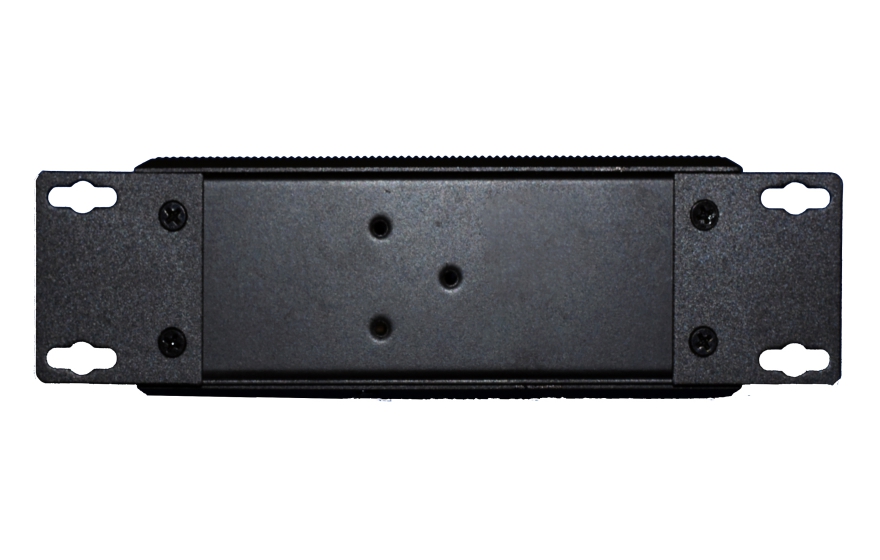

◆ Rail or wall mounting;

◆ Wide temperature range: working temperature -40 degrees ~ +85 degrees centigrade;

◆ All models are tested by 100% toaster guarantee period: 5 years;

Technical Parameters

◆ E1 Interface

Interface Standard: comply with protocol G.703;

Interface Rate: n*64Kbps±50ppm;

Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance) 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

◆ Ethernet interface (10/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

◆ Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

◆ Dimension

Product Size: Mini Type 216X140X31mm(WXDXH)

Simple packaging: 274X193X84mm(WXDXH)

Piece Weight : 1.25KG

◆ Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

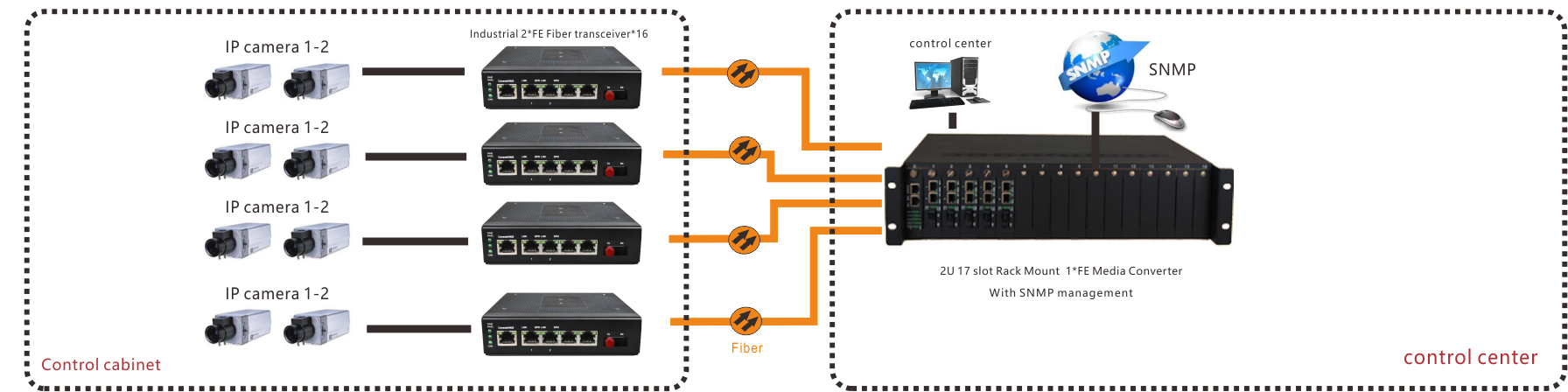

Application Scheme
