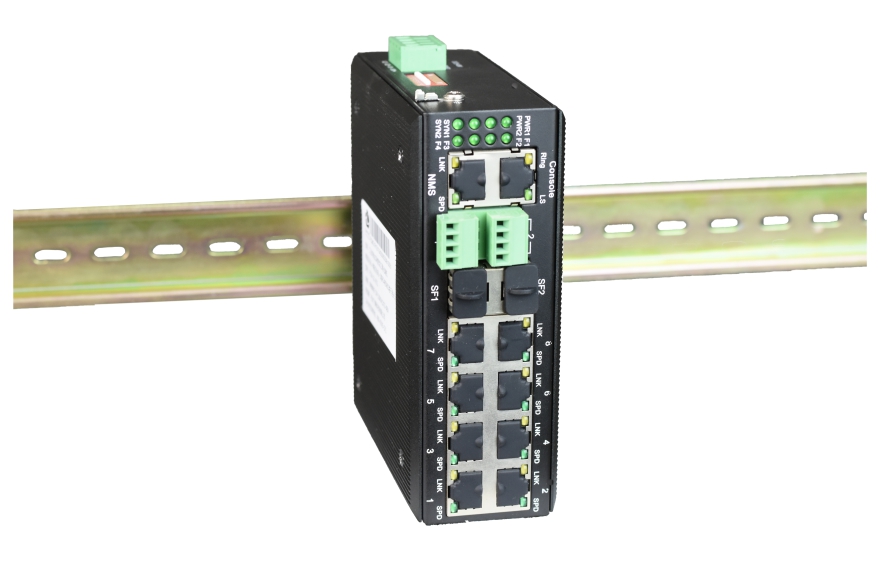

Managed 8FE to 100base-FX Fiber Media Converter

Type:FCMG-F8N MessageShare

Description:This series of products is industrial grade 8*100base-T to100base-FX optical fiber conversion mainly used for optical fiber network long distance (20/40/60/80/120 km) transmission. This product share the 100M bandwidth each channel bandwi

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

This series of products is industrial grade 8*100base-T to100base-FX optical fiber conversion mainly used for optical fiber network long distance (20/40/60/80/120 km) transmission. This product share the 100M bandwidth each channel bandwidth can be set by Console (Ethernet interface can support VLAN into exchange namely logic) isolation; 1 Console port.

Ethernet switch chip+FPGA scheme based on OAM frame with remote management function support Console/WEB/Independent SNMP Manager and 2U can also be inserted with SNMP network 1*FE optical transceiver card energy management to the equipment in SNMP software;

Functional Properties

◆ he industrial Ethernet series is designed for harsh industrial environments;

◆ The equipment provides 8 Fast Ethernet port 1*100base-FX an optional Console/SNMP network port;

◆ The electrical interface (RJ45 interface) supports 10/100M adaptation full / half duplex mode and MDI/MDI-X automatic detection;

◆ Optical interface supports multimode fiber single-mode fiber double double optical fiber transmission mode of three kinds of fiber the optional SC/ST/FC/LC interface;

◆ It has the functions of broadcast storm protection balanced flow isolation conflict detection error and self reset of crash. It is suitable for video transmission and other large flow data applications;

◆ The built-in 1MBits high-speed transceiver can transmit images to avoid caching stuck phenomenon IP camera monitoring screen in a rapidly changing environment caused by;

◆ Support for VLAN ultra long packet transmission and can be used to support the IEEE802.1Q protocol switch products support for the largest 1600 bytes of Ethernet package;

◆ +FPGA scheme for Ethernet switch chip equipment with remote OAM management frame function and 2U card with SNMP network 1 optical transceiver card 1 electrical interconnection SNMP software can manage the equipment; can also support Console (CLI) /WEB / SNMP network management independently;

◆ The network management real-time view and management of the end and the end of the Ethernet interface state and settings; equipment with power down detection function can detect when the optical signal lost for the terminal device power loss or optical fiber impassability;

◆ Supports wide range 9-55V AC and DC power input;

◆ Support for internal isolation redundant dual power input;

◆ The power supply supports overload protection and anti reverse connection protection;

◆ Comply with industrial grade four electromagnetic compatibility requirements;

◆ Super lightning protection function: against lightning resistance induction high voltage anti surge etc.;

◆ No fan high heat dissipation reduced repair time;

◆ Anodized aluminum housing IP40 protection level able to withstand the harsh environment test;

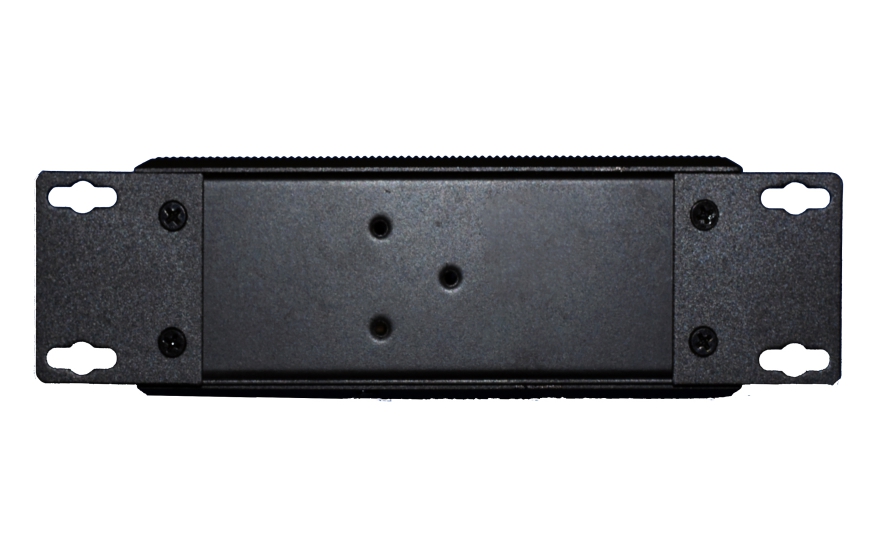

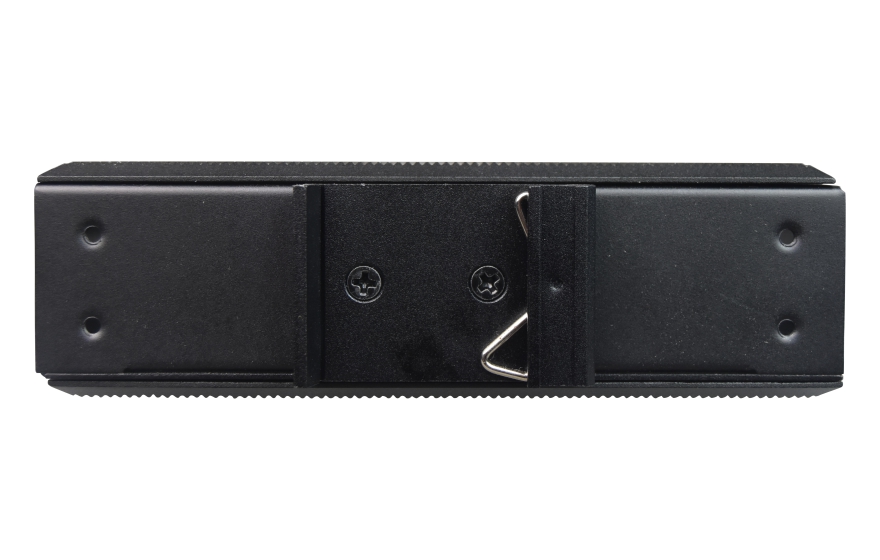

◆ Rail or wall mounting;

◆ Wide temperature range: working temperature -40 degrees ~ +85 degrees centigrade;

◆ All models are tested by 100% toaster guarantee period: 5 years;

Technical Parameters

◆ E1 Interface

Interface Standard: comply with protocol G.703;

Interface Rate: n*64Kbps±50ppm;

Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance) 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

◆ Ethernet interface (10/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

◆ Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

◆ Dimension

Product Size: Mini Type 216X140X31mm(WXDXH)

Simple packaging: 274X193X84mm(WXDXH)

Piece Weight : 1.25KG

◆ Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

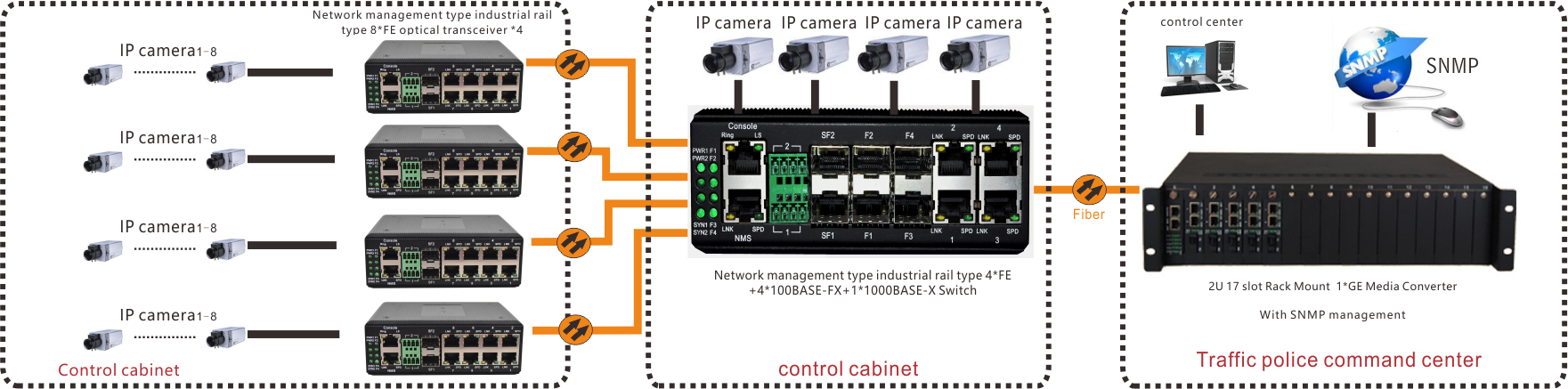

Application Scheme
