? CRC automatic alarm threshold can be set to isolate the poor quality transmission lines and cut off a single-direction. When 2M
branch circuit one direction error rate exceeds threshold, cutting off this direction the other direction is not affected; that is to say, both
of the Ethernetdirection transmission can be asymmetric
? Allow 8Channel E1 transmission time delay difference 100ms. When the margin exceed the allowed range, the system can automatically
stop on the E1 that time delay is too large to send data
? E1 interface conform to ITU-T G.703, G.704 and G.823, not support the use of signal timeslotu E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Ethernet interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product size: 19 inch 1U 485X138X44mm(WXDXH)
Simple packaging : 522X198X82mm( WXDXH)
Piece weight : 1.8KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

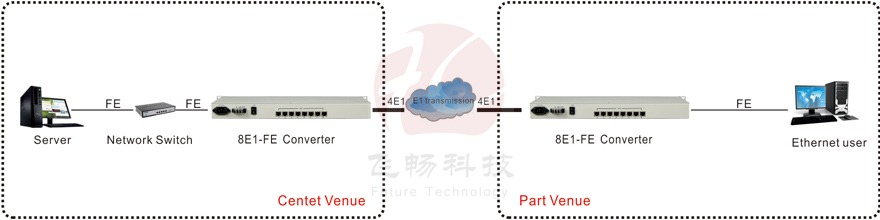

Applications
