? Ethernet interface supports10M/100M, half/full duplex auto-Negotiation and AUTO-MDIX
(crossed line and straightly connected line self-adaptable );
? Provide 2 clock types: E1 master clock and E1 line clock;? Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote
Ethernet interface Loop Back(REM)
? Have pseudo random code test function, easy the installation and maintenance;? Ethernet interface supports the counters of receiving and transmitting frame, receives wrong frame counters.
E1 interface supports the counters of receiving wrong frame;
? Realize monitor of remote equipment temperature and voltage from local equipment;u E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Ethernet interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)
Piece Weight: 1.1KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

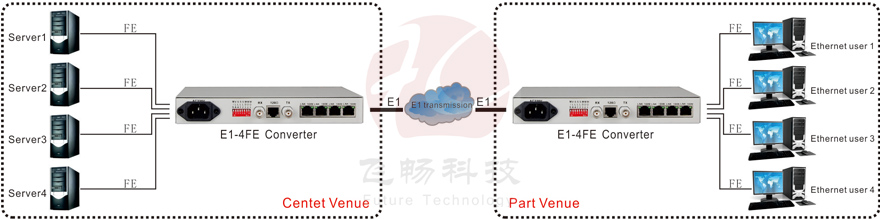

Applications
