? Support unframed mode (2048K) set and can manage the remote device condition ,
OAM management data did not take up user’s timeslot
? Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop back;? Ethernet interface supports10M/100M, half/full duplex auto- Negotiation and AUTO-MDIX
(crossed line and straightly connected line self-adaptable );
? Have Ethernet monitor self-reset function, the equipment will not dead? Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote
Ethernet interface Loop Back(REM)

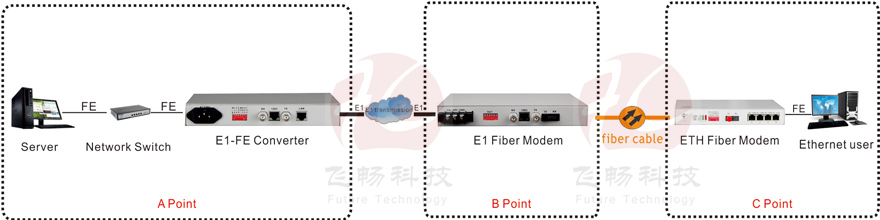

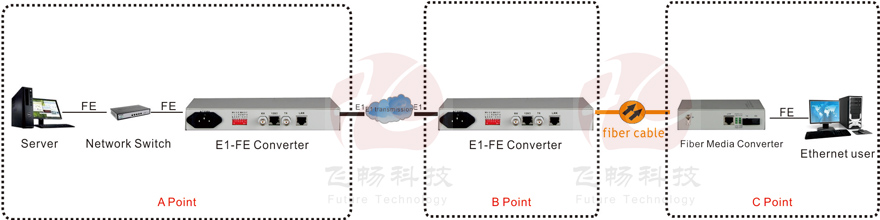

? Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;? Can form the structure: Ethernet E1 Bridge(A)－－-Optical Ethernet Modem(B)－－-Ethernet Optical Fiber Transceiver (C),
can manage (B) and (C) at (A)
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Ethernet interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)
Piece Weight: 1.2KG
u Working environmentWorking temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

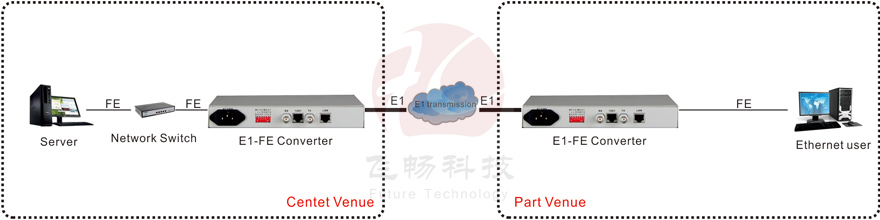

Applications 1
Applications 2
Applications 3
