? Have three Loop Back Mode: E1 interface Loop Back (ANA)、V.35 interface Loop Back(DIG)、Command the remote
V.35 interface Loop Back(REM)
? Have pseudo random code test function, easily line opened, can be used as a 2M BER Testeru Ethernet interface
Interface Standard: comply with protocol G.703;
Interface Rate: 2048Kbps±50ppm;
Interface Code: HDB3;
Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u V.35 interface
Interface rate: n*64Kbps
Interface Standard: Compatible with V.35 Standard
Connector: DB25
Connect Mode: DCE
Clock Type: G.703 restored clock, Internal clock
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product size: 216X140X31mm(WXDXH)
Simple packaging: 274X193X84mm(WXDXH)
Piece weight : 1.25KG
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

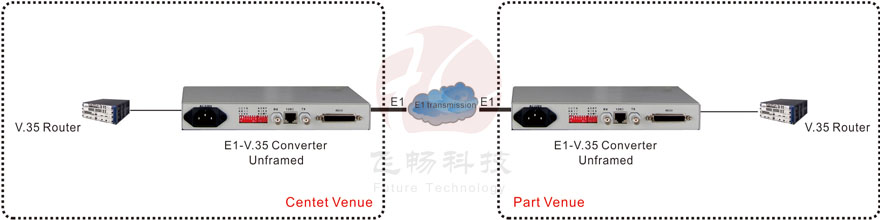

Applications
