Description:This series of equipment using large FPGA design using the original technology can support a channel Profibus-DP to fiber optic repeater communication rate 0-12Mpbs. IP40 protection grade wavy aluminum reinforced case 35mm DIN rail mo

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

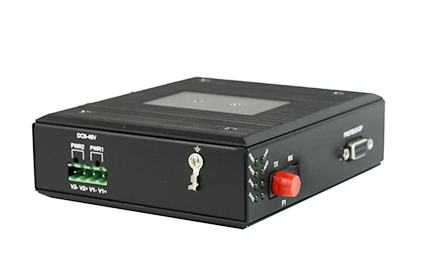

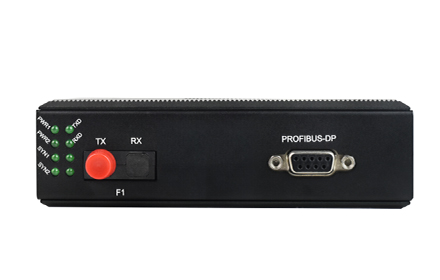

This series of equipment using large FPGA design using the original technology can support a channel Profibus-DP to fiber optic repeater communication rate 0-12Mpbs. IP40 protection grade wavy aluminum reinforced case 35mm DIN rail mounting AC & DC (9~55V) wide power input power supply redundancy and isolation protection. -40~75°C operating temperature range able to meet the requirements of various industrial sites providing convenient fiber optic communication solutions

Functional Properties

The device is used in pair the signal input terminal a signal output terminal;
?Provide 1 Profibus DP field bus communication baud rate adaptive 9600-12Mbps;
?Multimode/single mode fiber optional multimode can transmit 2KM single mode can transmit 20-120KM ST/SC/FC interface is optional;
?With signal fault protection function; omnidirectional display of electrical interfaces and fiber operating conditions
?Profibus DP interface anti-radar to IEC61000-4-5 (8/20μS). Differential mode: 6KV impedance (2Ω); Common mode: 6KV impedance (2Ω) standard;
?Support wide range of 9-48V AC and DC input support internal isolation redundant dual power input power supply overload protection anti-reverse protection；
?Meet the industrial four-level electromagnetic compatibility requirements;
?Super lightning protection function: lightning protection anti-induction high voltage anti-surge etc；
?Fanless efficient heat dissipation reducing repair time；
?IP40 enclosure protection level can withstand the harsh environment；

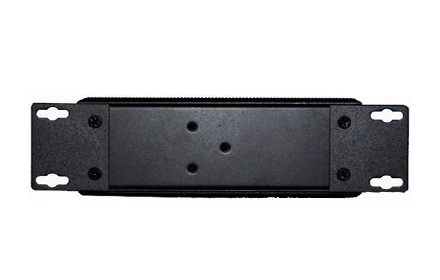

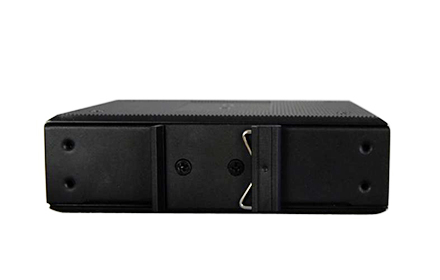

?DIN 35mm rail or wall mount；
?Wide temperature type: working temperature -40 ° C ~ +85 ° C；

Technical Parameters

◆Fiber optic
Optical port: 1
Optical fiber: single fiber and dual fiber
Fiber Interface: FC/SC/ST/LC (SFP)
Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode
No relay transmission distance: 20~120Km
Typical transmit power:
    Single mode 1310/1550nm: ≥-9dBm
    Multimode 850nm: -18dBma
    Multimode 1310nm: -25dBm
Acceptable sensitivity range: -28dBm~- 40dBm
◆Profibus DP interface
Standard：Support Profibus DP standard
Rate：9.6kBit/s、19.2 kBit/s、45.45kBit/s、 93.75k kBit/s、187.5kBit/s、500kBit/s、 1.5MBit/s、6MBit/s and 12MBit/s.
Physical interface： 9-pin D-Sub jack connector with pin definitions in accordance with Profibus DP protocol specifications
Rate setting: 9600-12Mbps/s automatic identification
Signal delay (electrical port): ≤11Bit
Terminal resistance: This unit does not have a terminating resistor please connect as needed
◆Working environment
Working temperature: -40℃—+85℃
Storage temperature:  -40℃—+85℃
Working humidity: 0%—95%（no condensation）
MTBF：   ＞100000 hours

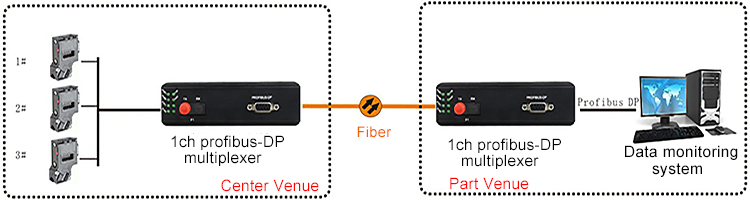

Application Scheme

DataSheet Download

Industrial rail 1 port Profibus-DP Multiplexer Specification
