◆ ba
◆ Have the ability to automatically detect the baud rate of serial port signal
◆ Automatically test the reason of the device matt is that the device is power off or E1 line is broken.
And then indicate on the LED
◆ Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV
Impedance (2 Ohm) CM(Common Mode): 6KV Impedance (2 Ohm) standard
◆ Support SNMP Network Managementu Fiber
Multi-mode Fiber
50/125um 62.5/125um
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm

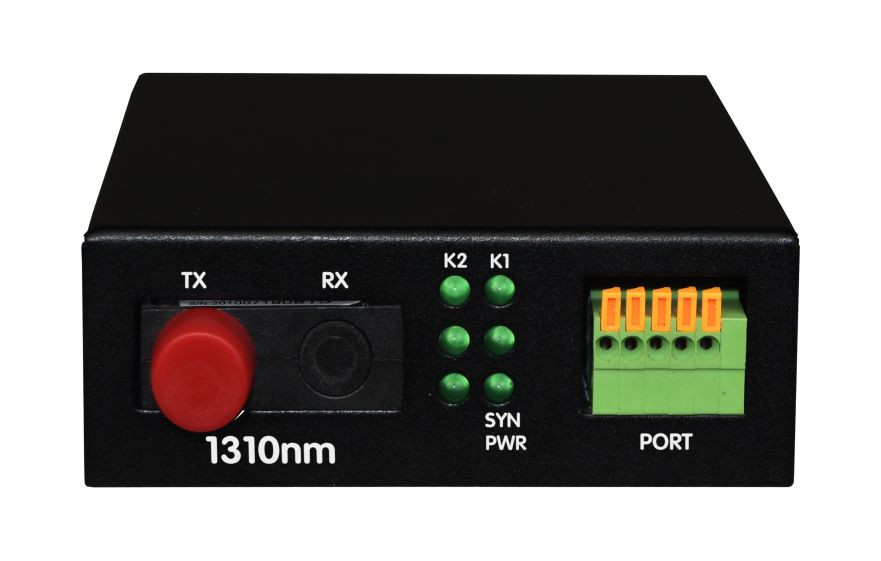

u Serial interface
Standard
EIA/TIA-485 RS-485 (ISO/IEC8284)
Serial Interface
RS-485 4 wires: TXD+ TXD- RXD+ RXD- Signal Ground
RS-485 2 wires: Data+(Correspond TX+) Data-（Correspond TX-） Signal Ground

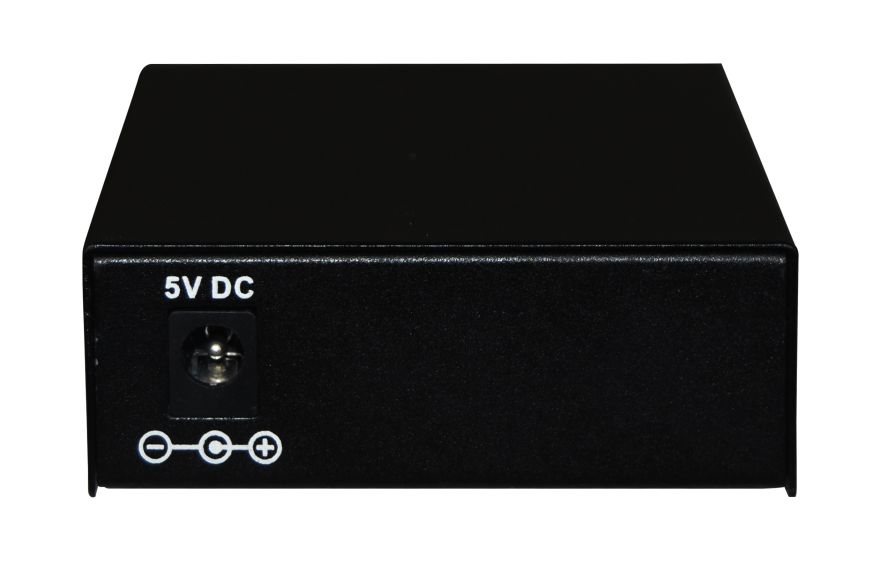

u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size: 95X94X31mm(WXDXH)
Piece Weight : 0.25KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
Applications
