Ø ba
Ø Modular wide dynamic optical detector
Ø Ethernet interface rate is 10M/100M half/full duplex auto- adaptable
Ø E1 interface comply with G.703 adopts digital clock recovery and smooth phase-lock technology
Ø 1Channel PCM digital business phone (optional)
Ø When optical lose signal it can detect the remote device is power off or fiber is disconnected and indicates alarm by LED
Ø The local device can view the remote device working condition
Ø Provide command the remote interface Loop Back ease line maintenance
Ø The transmission distance is up to 2-120Km without interruption
Ø AC 220V DC-48V DC24V can be optional
Ø DC-48V/DC24V power supply polarity detection function Polarity-Free
Multi-mode Fiber
50/125um 62.5/125um
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance) 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Ethernet interface (10/100M)
Interface rate: 10/100 Mbps half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45 support Auto-MDIX
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product size: Mini Type 216X140X31mm(WXDXH)
19 inch 1U 483X138X44mm(WXDXH)
Simple packaging: mini 274X193X84mm(WXDXH)
19inch 1U 522X198X82mm(WXDXH)
piece weight: mini 1.2 KG / 19inch 2.3KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

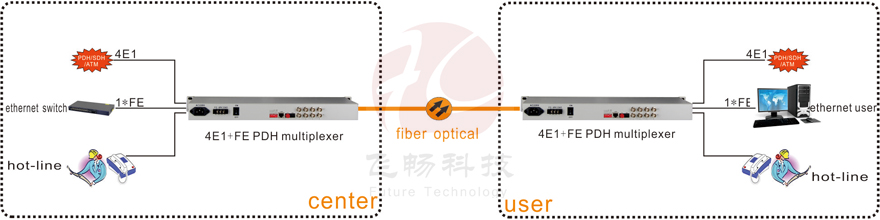

Applications
