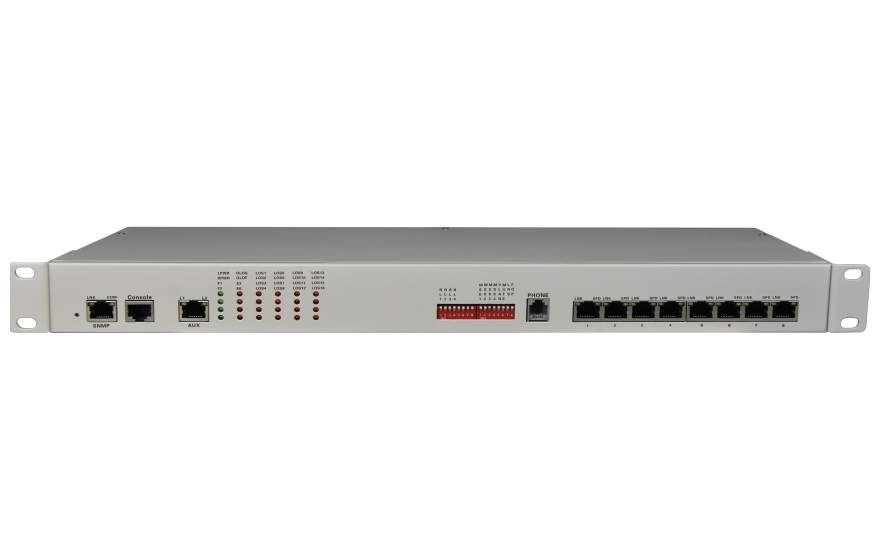

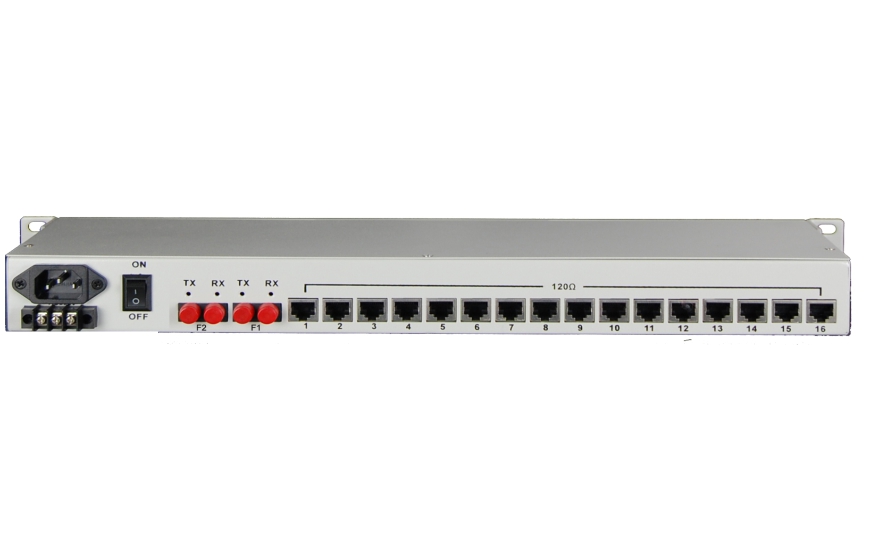

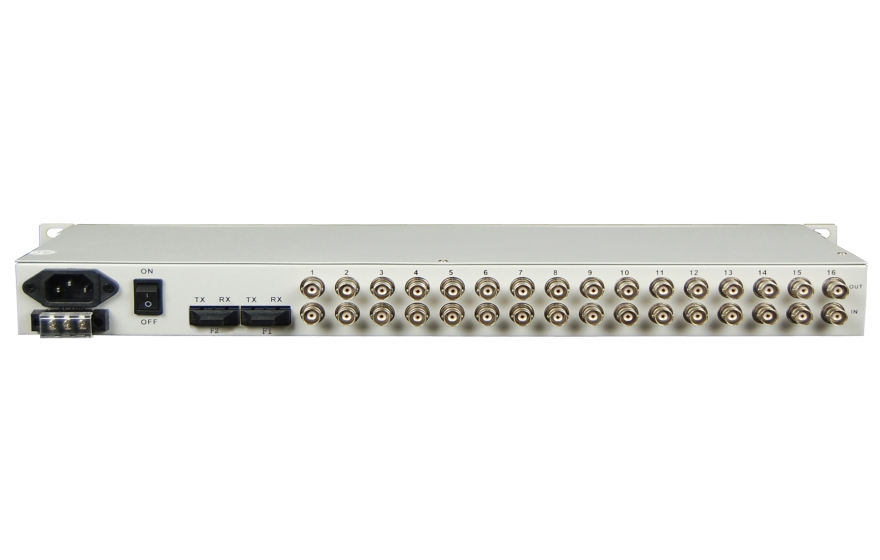

16E1+8xFE(Physical isolation) 1+1 PDH Multiplexer

Type:FC2P-E16F8p MessageShare

Description:This series of equipment is developed by the company PDH optical fiber transmission for ultra-large scale integrated circuit based on the development of point-to-point optical transmission equipment. Provides 1 ~ 16 E1 interface, the main o

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

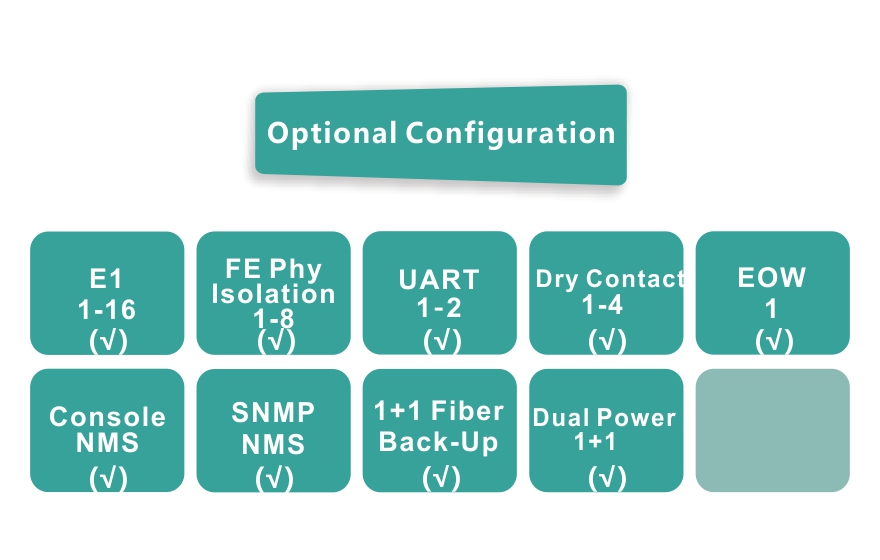

This series of equipment is developed by the company PDH optical fiber transmission for ultra-large scale integrated circuit based on the development of point-to-point optical transmission equipment. Provides 1 ~ 16 E1 interface, the main optical fiber interface and backup fiber interface, 8*physical isolation 10/100M Fast Ethernet interface (independent 8* wire speed 100M), and 2 extended business interface. 2*extended service interface can be used as RS232/RS485/RS422 asynchronous data/TTL signal, the application is very flexible. Optional digital business phone, optional Console serial network management, optional independent SNMP network management.

Functional Properties

◆ Based on independent intellectual property rights of integrated circuits;

◆ E1 interface in line with G.703 recommendations, the use of all-digital clock recovery and smooth phase-locked technology;

◆ Equipment to provide the main optical interface and backup fiber interface, dual optical port backup function to ensure that business never interrupted;

◆ 8 physical isolation Ethernet interface rate of 10/100M, full duplex/half duplex adaptive, each wire speed independent bandwidth 100M, the total bandwidth of two-way 8*100M;

◆ Support the maximum ultra-10K giant frame Ethernet packet transmission, can support the IEEE802.1Q protocol with the use of the switch products;

◆ With the Ethernet loopback function (when the optical line occurs when the loop, the Ethernet data will not be loop back, effectively prevent the Ethernet loop may cause the Ethernet network paralyzed);

◆ Uses standard 2 wire telephone (non-telephone handles) set as engineering order-wire hotline(optional);

◆ Provide 2 expansion interface, optional expansion 1~2 asynchronous data, such as RS232/485/422/TTL; or 1 to 4 dry contact and so on;

◆ Can detect when the optical signal is lost when the remote device power down or fiber unreasonable, and through the indicator light alarm;

◆ Have the function of displaying the remote device working status at the local end;

◆ Provide remote E1 interface loopback function to facilitate line maintenance;

◆ No relay transmission distance of up to 2 to 100 km;

◆ A variety of power supply options: AC220V, DC-48V / DC24V, etc .; support AC + DC; AC + AC; DC + DC dual power backup mode;

Technical Parameters

◆ Fiber

Multi-mode Fiber

50/125um 62.5/125um

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

◆ FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ EM 2/4 Line

AD: 0dB

DA: -3.5dB

Two/Four-line Impedance: 600 Ohm

Return loss: 20 dB

◆ Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

◆ Dimension

Product Size: Mini Type 216X140X31mm(WXDXH)

19inch 485X200X45mm(WXDXH)

Piece Weight : mini 1KG / 19inch 2.4KG

◆ Working environment

Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Application Scheme

DataSheet Download
