? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;
? Support full-duplex and half duplex network communication, with auto-negotiation capability;
? The Ethernet interface supports jumbo frames (1600bit), which can match with the switch product complied with IEEE802.10 protocol
? Support the LFP (Link Fault Pass Through) function ,when the fiber used connecting transceiver and UTP has fault, transceivers will notify
the other end indicating fault information
? With Fiber Alter function, that is, after not receiving optical signal automatically cut off optical circuit (opened on network management);
? Support FX half/full duplex and link fault alarm function switch optional
? Support UTP cross connection switch optional, convenient for system debugging and setup
? Low power consumption, Low heating, can be stable work for a long time;
? Single-core optical fiber and internal and external power optional, expands user's needs
u Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product size: 136 X131 X31 mm(WXDXH)
Simple packaging: 295X225X84mm( WXDXH)
Piece weight: 0.5KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

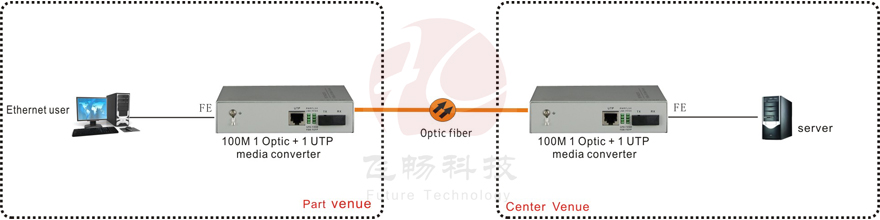

Applications 1

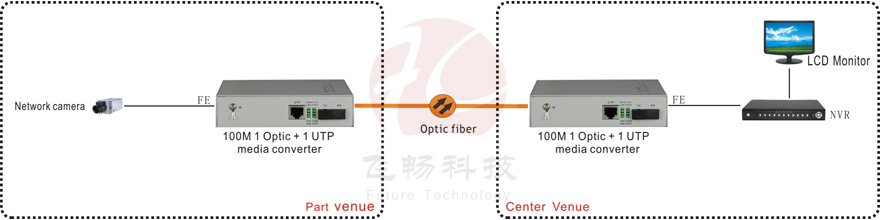

Applications 2
