Ø Ethernet UTP/STP interface automatically adapt to 10/100Mbps environment upgrade network easily;
Ø Device provides 24*FE UTP/STP interface and 2*1000ba
Ø Support full-duplex and half duplex network communication with auto-negotiation capability;
Ø The max package length up to 1632 Bytes which can match with the switch product complied with IEEE802.10 protocol
Ø Support UTP cross connection switch optional convenient for system debugging and setup
Ø Device provides Console port supports Terminal control device
Ø Ethernet port priority setting
Ø AC 220V DC-48V DC24V can be optional and DC-48V/DC24V
power has polarity automatic detectionfunction
you can install the device without differentiation between positive and negative polarity.
u Ethernet UTP Interface
Interface rate: 10/100 M half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45 support Auto-MDIX
u Optical Ethernet interface
Wave Length: 1310nm 1550nm
Interface rate: 100 M half/full duplex
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 485X138X45mm( WX DXH))
Simple packaging : 522X198 X82mm ( WX DXH)
Piece Weight: 3.3KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

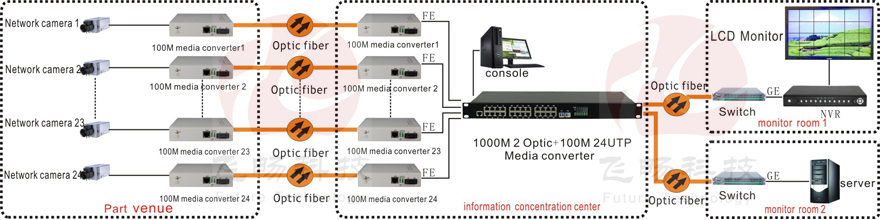

Applications
