? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;
? Support FX half/full duplex and link fault alarm function switch optional
? The Ethernet interface supports VLAN, jumbo frames (1600bit), which can match with The switch product complied with
IEEE802.10 protocol
? Support the LFP (Link Fault Pass Through) function ,when the fiber used connecting transceiver and UTP has fault, transceivers
will notify the other end indicating fault information
? With Fiber Alter function, that is, after not receiving optical signal automatically cut off optical circuit (opened on network management);

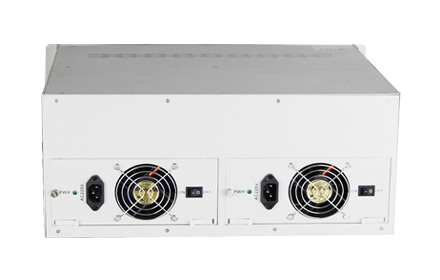

? Rack supports SNMP network management, 4U case support two backup power
? Low power consumption, Low heating, can be stable work for a long time;
? Single-core optical fiber and internal and external power optional, expands user's needs
u Ethernet UTP Interface
Interface rate: 100/1000 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber TransmissionDistance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 443X365X195mm( WX DXH))
Piece Weight: 12KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

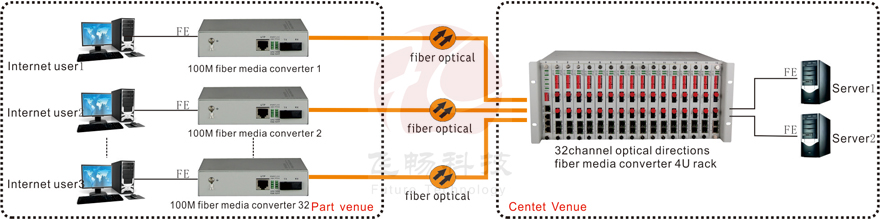

Applications
Voice Over Fiber/E1 PDH/SDH Multiplexer Interface Converter TDM Over IP Industrial Ethernet Switch Power over Ethernet Fiber Media Converter Dry Contact Fiber MUX Fiber Optic Modems OEO series products HD Video Over Fiber Digital Video Fiber MUX Digital Audio Fiber MUX E1 Video/Audio Codec E1 Impedance Convert Access Rack&SNMP Serial Interface/Industrial Interface/Fieldbus
