? VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches used to support
up to 1600-byte Ethernet packets;
? infrastructure equipment can manage to peer desktop fiber optic transceivers? Support LFP (Link Fault Pass Through) function, when the fiber optic and twisted pair transceiver connected to either ends of a failure,
notify the other end of the transceiver display error messages
? have FiberAlter, automatic cut-emitting optical path (open NMS) that receive light signals;u Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product size: 443 X365 X110mm(WXDXH)
Piece weight: 5.5KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

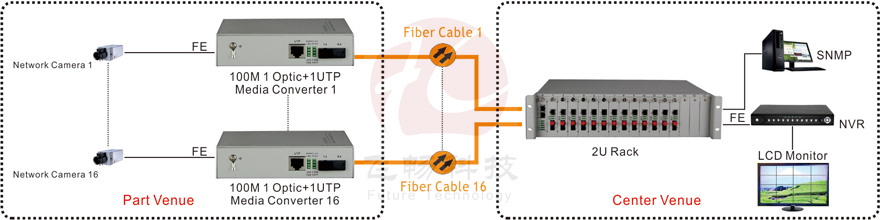

Applications
