? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;
? Device provides the main fiber interface with backup optical interfaces, dual fiber port backup function ensures
that the business will never break;
? Device provides 4 Ethernet UTP, 2 Ethernet optical port
? Support full-duplex and half duplex network communication, with auto-negotiation capability;
? The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied with IEEE802.10 protocol
? 4*100 megabit Ethernet channel, complete physical isolation. The same circuit optical fiber transmission of 4 group
network business independently.
? Division of VLAN base PORT, this method does not affect the remote device
? 802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN
? Device provides Console port, supports Terminal control device
? Ethernet port priority setting
u Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)
Piece Weight: 1.8KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

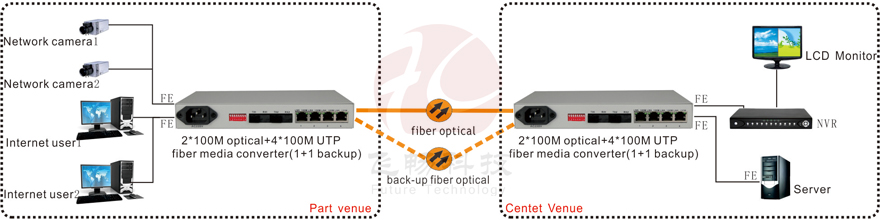

Applications
