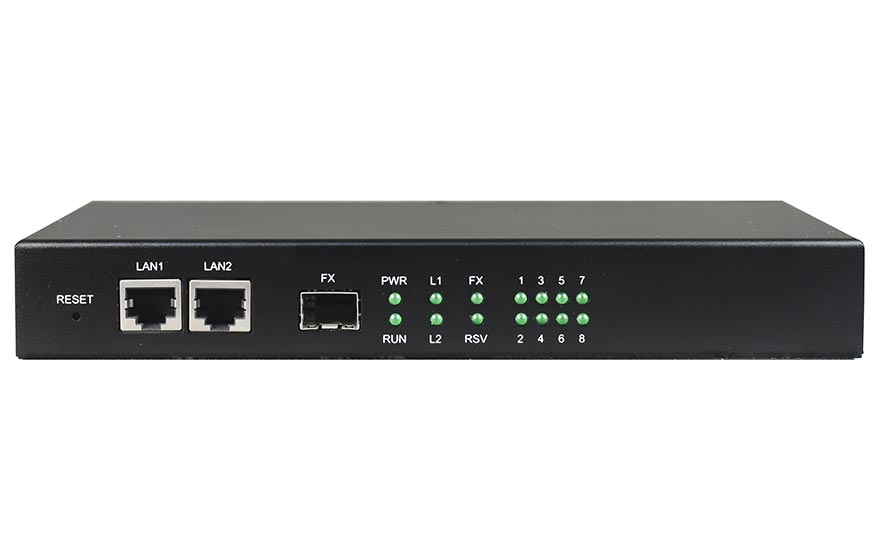

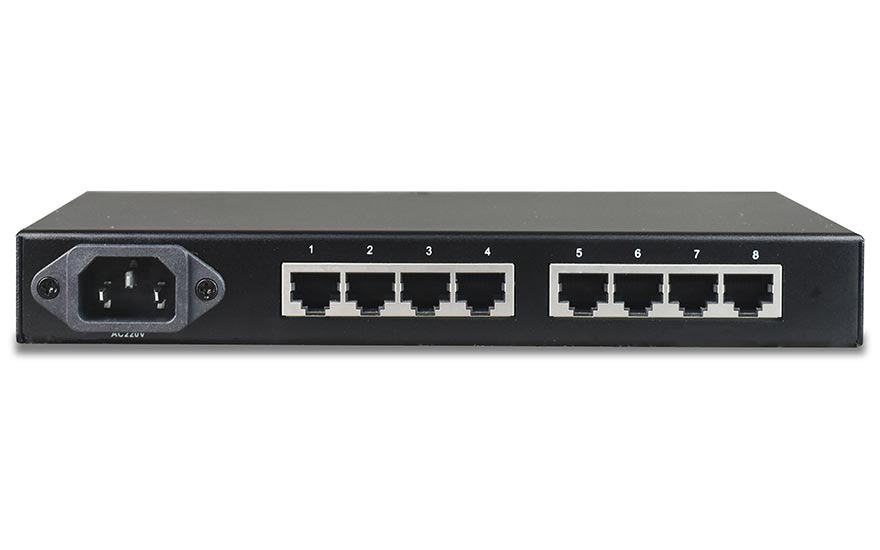

8channel Voice over Ethernet(IP)

Type:FCT-O8/FCT-S8 MessageShare

Description:8*Voice over Ethernet Internal power AC220V/DC48V/DC24V can be optional.

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

The converter encapsulates the voice data in the IP packet supports the UDP packet mode realizes the 1-8 voice service to the 100M Ethernet conversion in the same network segment or through the router to achieve different network segment communication.

Functional Properties

◆ High transmit efficiency low transmit delay.

◆ Provide Console(CLI)/WEB management interface easy to install and open;

◆ Voice port to support FXO/FXS/2-4 Wire E&M / 2-4 wire Audio/Magnet phone interface FXO port plug into PBX FXS port is connected to the user's telephone;

◆ Voice FXO / FXS interface support for caller ID / reverse polarity billing / fax function;

◆ Both sides of the device support FXO+FXS hybrid access;

◆ Ethernet interface rate of 10M / 100M full duplex / half duplex adaptive;

◆ Support power failure or automatic network recovery;

◆ Support Ethernet packet out-of-order recovery and cache to anti-network delay;

◆ Adjustable frame length to balance bandwidth and transmission delay;

◆ based on hardware design start fast;

◆ DC-48V / DC24V power supply with polarity automatic detection function;installation does not need to distinguish between positive and negative.

Technical Parameters

◆ Ethernet interface(10/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

◆ FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

EM 2/4 Line

AD: 0dB

DA: 0dB

Two/Four-line Impedance: 600 Ohm

Return loss: 20 dB

◆ Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

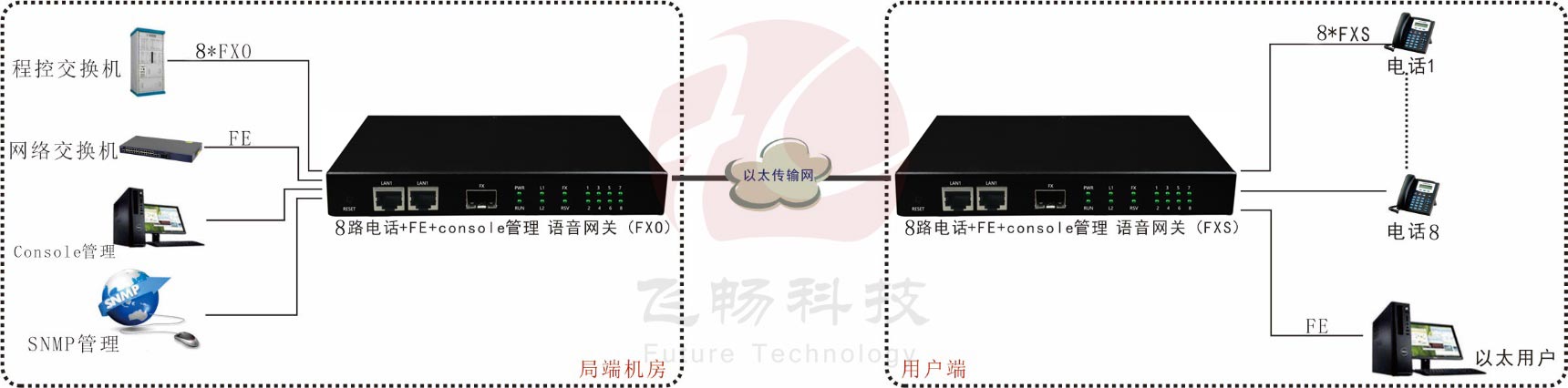

Application Scheme

DataSheet Download
