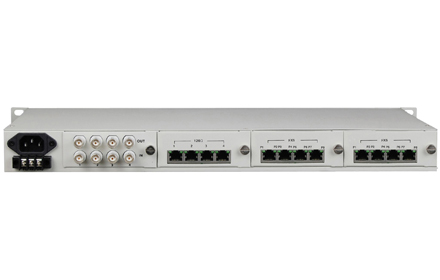

This device is modular structure point-to-point optical transmission equipment with LCD display uses the FPGA chips and easy to upgrade. The Main board provide 4*100M channel Ethernet data and 2 AUX port which is for transmitting other data such as RS232/RS485/RS422 two optical interface for optional 1+1 auto protection switch (APS).
4 slots of tributary with variant plug-in modules which included 4xE1 channels module 4/8/16 x FXO/FXS module and 2x Nx64K V.35 module.The maximum capacity will be up 4 plug-in modules which could be combinations with above modules.The high flexibility performance is the best solution for voice/data/video services in existed market.
Ø Provides total 16 E1 transparent transmission capacity ;
Ø With char 16*2 LCD display and SNMP agent inside.
Ø Provide Console manage interface(RS232)
Ø Provice one hotline channel for option;
Ø Provide two SFP fiber interfaces one as master the other as slave insuring uninterrupted service transmission.
Ø The rate of optical port is 155Mbps transmission range can reach 25KM 40KM 60KM 80KM or 100KM;
Ø Provide two fiber interface 1+1 protect（APS）function and ALS（Automatic Laser Shutdown/Reduction）function
Ø Provide 4 slots plug-in modules:
u 4×unfr
u 4×FXO/FXS/EM2-4/Magnet telephone module
u 8×FXO/FXS/2 line audio/Magnet telephone module
u 16×FXO/FXS/2 line audio/Magnet telephone module
u 2×V.35 (2.048M Fixed speed) module
u 2×V.35 (N*64K N=1-32) module
u 4×RS232/422/485 module
u 4*FE to E1 bridge(wire speed 2.048M) module
Ø Provide 4FE(wire speed 100M)Ethernet channelsupport mutual negatiate Ethernet bandwidth is set on ba
Ø Ethernet port supports full/half duplex 10M/100M auto-ataptable;
Ø Ethernet port supports VLAN function and has 4 devision mode for user selection;
Ø Ethernet package size support 1916 byte and 4 Ethernet port could be set seperately;
Ø Has complete alarm function and can monitor remote device status;
Ø Supports E1 loop from remote so as to detect and manage device conveniently;
Ø The combination AC220V and DC-48V for redundant
u Fiber
Multi-mode Fiber
50/125um 62.5/125um
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance) 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Ethernet interface(100/100M)
Interface rate: 10/100 Mbps half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45 support Auto-MDIX
u FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
u FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
u EM 2/4 Line
AD: 0dB
DA: -3.5dB
Two/Four-line Impedance: 600 Ohm
Return loss: 20 dB
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size: 216X140X31mm(WXDXH)
Piece Weight : 1KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

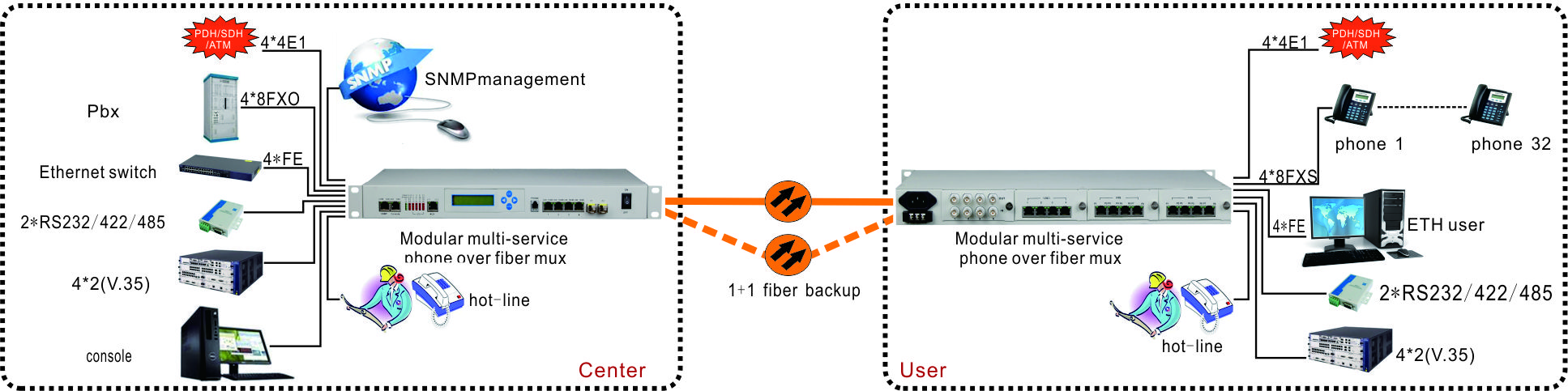

Applications
The motherboard provides:
1. LCD display;
2.4-way wire-speed 100M shared Ethernet channel;
3.2-way transparent RS232 / 422/485 asynchronous channels;
4.1 channel public telephone
5. SNMP network management
4 slot supports mixed insertion provide:
u 4 × E1 module (75Ω) / (120Ω)
u 4 × framing E1 module (75Ω) / (120Ω) you can set an arbitrary time slot
u 4 × FXO / FXS / EM2-4 / magnet module
u 8 × FXO / FXS /2 wire audio / magnet module
u 16 × FXO / FXS /2 wire audio / magnet module
u 2 × V.35 (2.048M fixed rate) module
u 2 × V.35 (N * 64K N = 1-32) module
u 4 × RS232 / 422/485 / switch module
u 4 Ethernet bridge (rate 2.048M) module
As above if you want to achieve 8E1 + 4FE + 32-way telephone (FXO / FXS) function you can configure two 4E1 cards two 16xFXO / S telephone cards
