Fiber-64Voice + 4E1 + 4FE Multiplexer

Type:FCP-O64E4F4C1/FCP-S64E4F4C1 MessageShare

Description:This series of products is developed based on FPGA. This device is 19-inch 1U rack-mounted, providing 64* Voice interface; 4*E1 interface; 4*FE Ethernet interface (Ethernet interface for the switch port, can support VLAN division), and shar

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

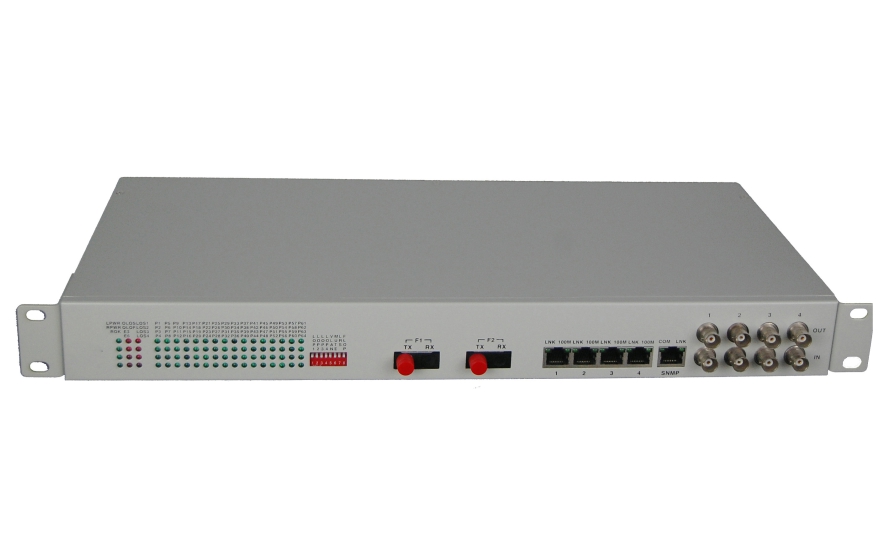

This series of products is developed based on FPGA. This device is 19-inch 1U rack-mounted, providing 64* Voice interface; 4*E1 interface; 4*FE Ethernet interface (Ethernet interface for the switch port, can support VLAN division), and share 100M bandwidth, Can be set through the SNMP port, that is, logic isolation; SNMP management interface and 1 +1 optical port backup; device work is reliable, stable, low power consumption, high integration, Small, easy to install and maintain.

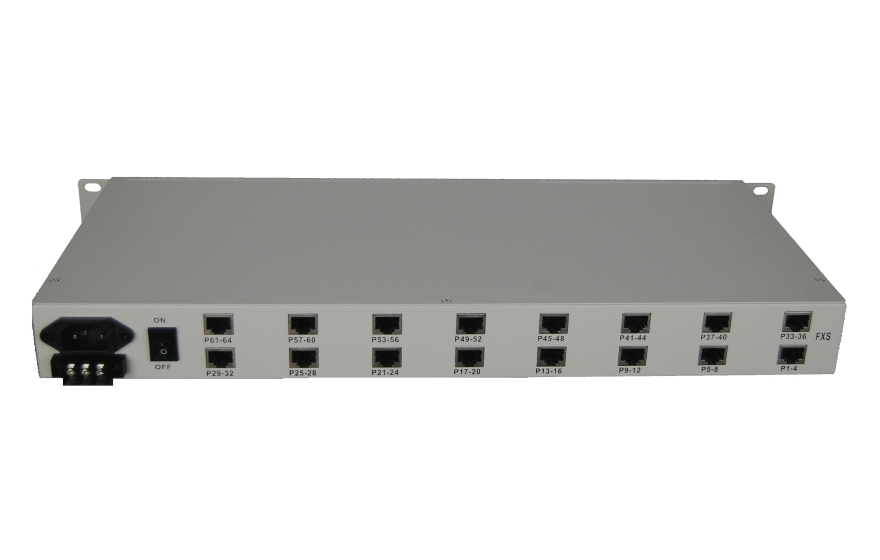

The product is 19 "1U rack mounted;

Functional Properties

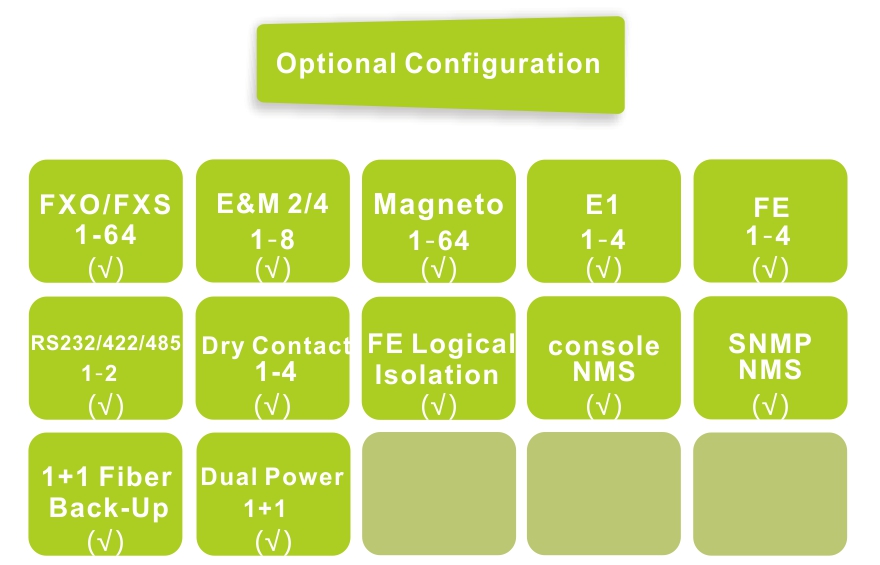

◆ Equipment to provide the main optical fiber interface and backup fiber interface, dual optical port backup function to ensure that business never interrupted;

◆ E1 interface in line with ITU-T G.703 recommendations, the use of all-digital clock recovery and smooth phase-locked technology;

◆ Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interface, FXO port plug into PBX, FXS port is connected to the user's telephone;

◆ Voice FXO/FXS access, support for caller ID / reverse polarity billing / fax function;

◆ Both sides of the device support FXO+FXS hybrid access;

◆ Provide 2 expansion interface, you can extend 1 ~ 2 asynchronous data, such as RS232/485/422 / TTL, etc .; or 1 to 4 Dry Contact;

◆ FE Ethernet bandwidth for the wire speed 100M, interface 10/100M, full/half duplex fully adaptive, support VLAN division;

◆ 4*FE interface for the switch port, VLAN can also be divided into four channels can be set to logic isolation;

◆ Each Ethernet port supports Auto-MDIX (cross / direct wire adaptation);

◆ No relay transmission distance of up to 2 to 120 km; support 1 +1 optical port backup, the main fiber has a problem, the backup fiber work;

◆ A variety of power supply options: AC220V, DC-48V/DC24V, etc .; support AC+DC; AC+AC; DC+DC and other dual power backup mode;

◆ Telephone/Ethernet/Serial interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;

◆ Supports Console management and independent SNMP management mode;

Technical Parameters

◆ Fiber

Multi-mode Fiber

50/125um 62.5/125um

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

◆ Ethernet interface(100/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

◆ FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ EM 2/4 Line

AD: 0dB

DA: -3.5dB

Two/Four-line Impedance: 600 Ohm

Return loss: 20 dB

◆ Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

◆ Dimension

Product Size: 216X140X31mm(WXDXH)

Piece Weight : 1KG

◆ Working environment

Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

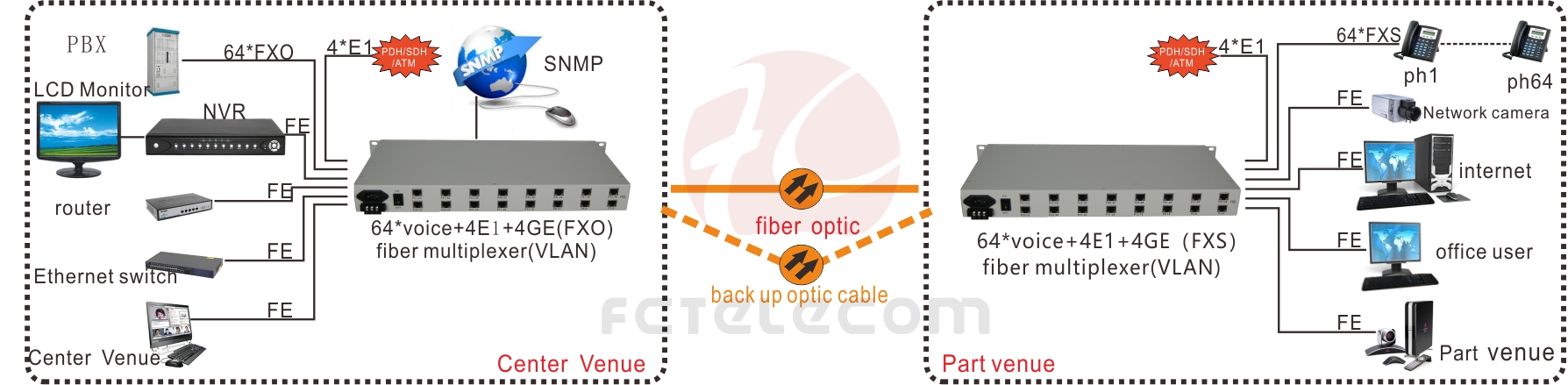

Application Scheme

DataSheet Download
