1-384*Voice RACK Mount Fiber Multiplexer

Type:FC2P-O256F4R2/FC2P-S256F4R2 MessageShare

Description:4U rackmount multiplexer，1-384 * thelephone，4*100/1000 Mbps Ethernet，E1，Console or SNMP

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

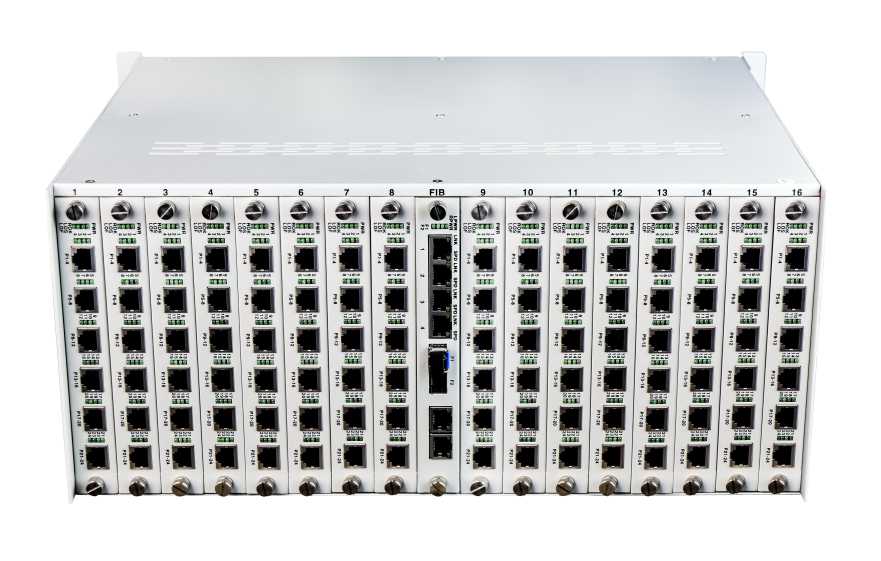

1-384*Voice Fiber Multiplexer is designed based on FPGA. It is modular design the equipment is 4U chassis providing 1-384 phone 4 10/100M Fast Ethernet interface (wire speed 100M) or 4*10/100/1000M Gigabit Ethernet interface (wire speed 1000M) Or 4 physical isolation FE Ethernet interface (100M per wire speed independent bandwidth). But also 4 expansion of business interfaces such as RS232/485/422 asynchronous data /TTL signal/dry contact interface and other transmission channels the application is very flexible.

Functional Properties

◆ based on self -copyright IC;

◆ Easy expansion increase the card can be easy to maintain change the card can be;

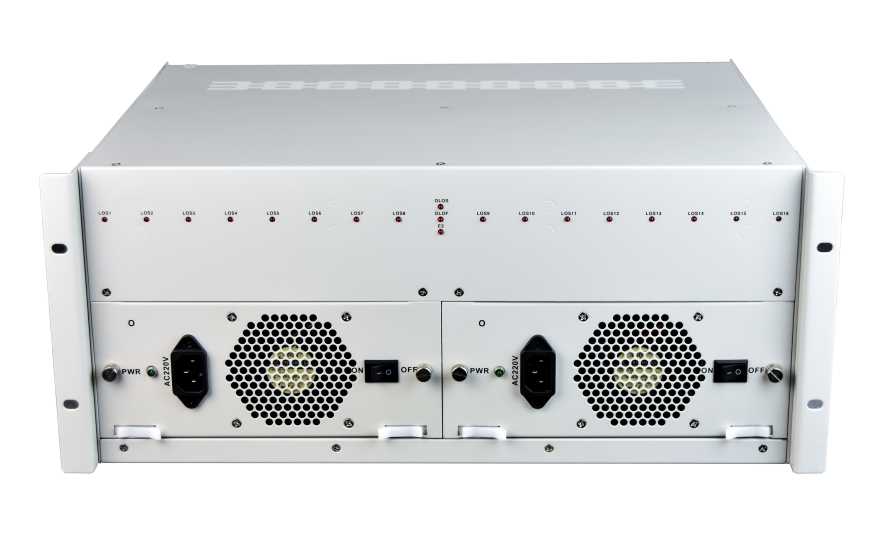

◆ Equipment for the 4U 19-inch chassis a total of a optical card (1+1 optional) and 16 function cards the function card has 16*voice card/24*voice cards/8*2-4 wire E&M card/single E1 card/8*serial card+ 2 expansion interface such as RS232/485/422 asynchronous data/TTL interface/dry contact interface; the maximum configuration of this device is 384*voice if you want to configure the SNMP network management remove a piece of telephone card such as to configure 1*E1 board remove the 1 * voice card;

◆ 384 Channel voice access support for caller ID / reverse polarity billing/fax function;

◆ Both sides of the device support FXO+FXS hybrid access;

◆ Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interfaceFXO port plug into PBXFXS port is connected to the user's telephone;

◆ 4*10/100M Fast Ethernet interface(wire speed 100M) or 4*10/100/1000M Ethernet interface (wire speed 1000M) Or 4 physical isolation FE interface (100M per wire speed independent bandwidth) is optional;

◆ Can command the remote interface loop back to maintain the circuit;

◆ No relay transmission distance of up to 2 to 120 km; to provide the main optical fiber interface and backup fiber interface dual optical port backup function to ensure that business never interrupted;

◆ Variety of power options: AC220V DC-48V etc .; support AC+DC; AC+AC;DC+DC and other dual power mode;

◆ DC-48V power with automatic polarity detection installation without distinction between positive and negative.

◆ Telephone/Ethernet/Serial interface with lightning protection lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs open peak output voltage 6KV standard;

Technical Parameters

◆ Fiber

Multi-mode Fiber

50/125um 62.5/125um

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

◆ E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

E1 Impedance: 75Ω (unbalance) 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

◆ Ethernet interface(100/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

◆ FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

◆ Working environment

Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Application Scheme

Applications

DataSheet Download
