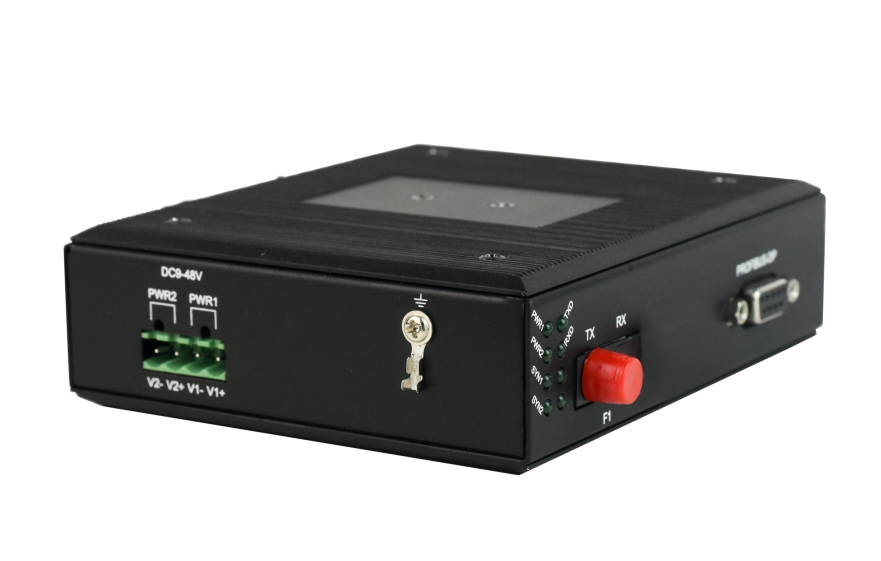

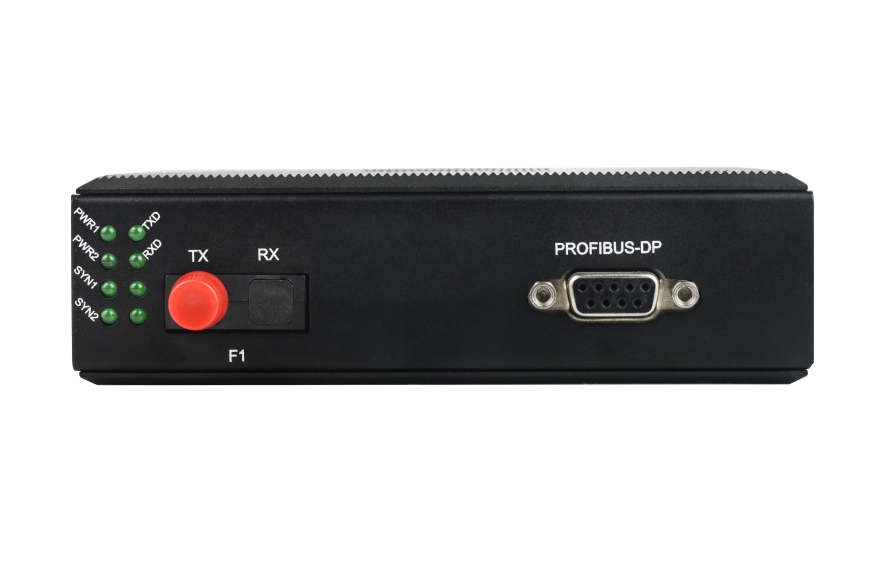

Industrial rail 1 port Profibus-DP Multiplexer

Type:FCP-P1G MessageShare

Description:Transmit 1 port Profibus DP interface over fiber optic;1 fiber optic interface; 1 Profibus DP interface.

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

This series of equipment using large FPGA design, using the original technology, can support a channel Profibus-DP to fiber optic repeater, communication rate 0-12Mpbs. , IP40 protection grade, wavy aluminum reinforced case, 35mm DIN rail mounting, AC & DC (9~55V) wide power input, power supply redundancy and isolation protection. -40~75°C operating temperature range, able to meet the requirements of various industrial sites, providing convenient fiber optic communication solutions.

Functional Properties

◆ The device is used in pair, the signal input terminal, a signal output terminal;

◆ Provide 1 Profibus DP field bus, communication baud rate adaptive 9600-12Mbps;

◆ Multimode/single mode fiber optional, multimode can transmit 2KM, single mode can transmit 20-120KM, ST/SC/FC interface is optional;

◆ With signal fault protection function; omnidirectional display of electrical interfaces and fiber operating conditions

◆ Profibus DP interface anti-radar to IEC61000-4-5 (8/20μS). Differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard;

◆ Support wide range of 9-48V AC and DC input, support internal isolation, redundant dual power input, power supply overload protection, anti-reverse protection；

◆ Meet the industrial four-level electromagnetic compatibility requirements;

◆ Super lightning protection function: lightning protection, anti-induction high voltage, anti-surge, etc；

◆ Fanless efficient heat dissipation, reducing repair time；

◆ IP40 enclosure protection level, can withstand the harsh environment；

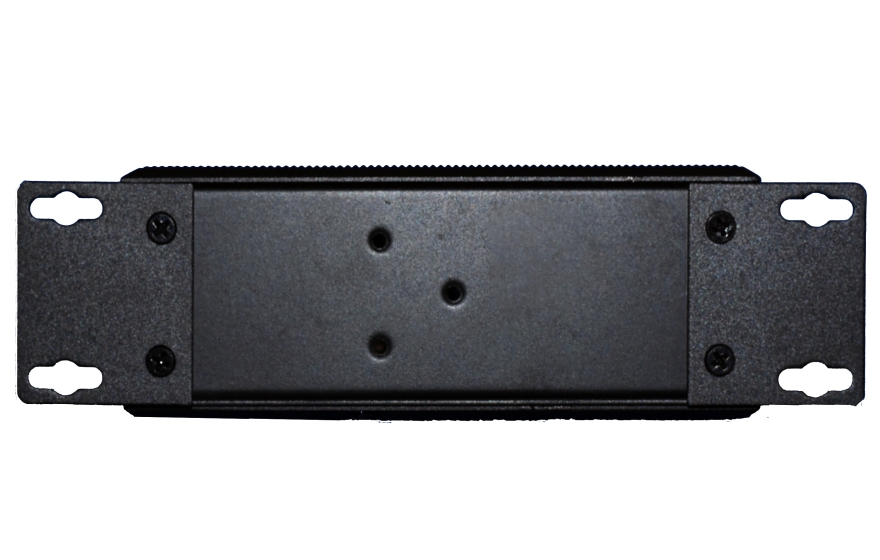

◆ DIN 35mm rail or wall mount；

◆ Wide temperature type: working temperature -40 ° C ~ +85 ° C；

◆ All models are tested by 100% baking machine, warranty period: 5 years.

Technical Parameters

◆ Fiber optic

Optical port: 1

Optical fiber: single fiber and dual fiber

Fiber Interface: FC/SC/ST/LC (SFP)

Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode

No relay transmission distance: 20~120Km

Typical transmit power:

Single mode 1310/1550nm: ≥-9dBm

Multimode 850nm: -18dBm

Multimode 1310nm: -25dBm

Acceptable sensitivity range: -28dBm~- 40dBm

◆ Profibus DP interface

Standard：Support Profibus?DP standard

Rate：9.6kBit/s、19.2?kBit/s、45.45kBit/s、 93.75k?kBit/s、187.5kBit/s、500kBit/s、 1.5MBit/s、6MBit/s?and?12MBit/s.

Physical interface： 9-pin D-Sub jack connector with pin definitions in accordance with Profibus DP protocol specifications

Rate setting: 9600-12Mbps/s automatic identification

Signal delay (electrical port): ≤11Bit

Terminal resistance: This unit does not have a terminating resistor, please connect as needed

◆ Working environment

Working temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95%（no condensation）

MTBF：＞100,000 hours

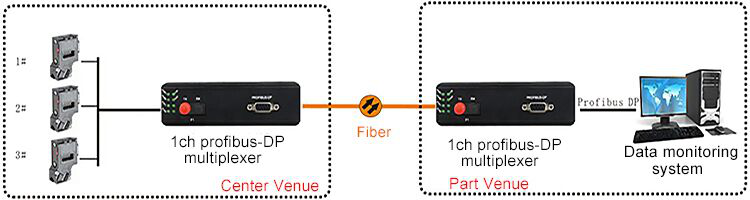

Application Scheme

Industrial rail 1 port Profibus-DP Multiplexer

DataSheet Download

Industrial rail 1 port Profibus-DP Multiplexer Specification
